Enzyme Wash Bio-Polishing: Eliminating Micro-Fuzz for Sharp Prints
Custom print programs appear straightforward—design artwork, apply to fabric, and distribute. The physics of fabric surface structure on print clarity is routinely underestimated. Micro-fuzz protrusions on cotton fabric surfaces create uneven ink deposition, blurring fine print details and degrading DTF adhesion. Enzyme wash bio-polishing removes these surface fibers using natural cellulase enzymes, creating a 30-40% smoother substrate that delivers razor-sharp print lines. We break down the technical requirements for enzyme wash bio-polishing—enzymatic reaction parameters, surface roughness reduction, print clarity improvement, and procurement benchmarks that determine print program success.
All performance data based on surface roughness testing, print resolution measurements at 10x magnification, and production cost benchmarks from 2025-Q4 manufacturing data. If your design team or procurement buyer is developing a custom print program with fine detail requirements, this technical breakdown maps bio-polishing specifications to specific print methods and quality expectations.
1. Sourcing Realities: What Design Teams Overlook Regarding Fabric Surface Structure
Most design teams approve fabric samples based on hand-feel and color, ignoring the surface structure that determines print clarity. A 160 GSM cotton sample might feel soft, but the surface micro-fuzz creates uneven ink deposition that blurs fine print details. Without specifying bio-polishing or surface roughness targets, your fine detail prints will appear fuzzy and unprofessional. This is a substrate physics issue, not a printing quality issue—the fabric surface structure determines print resolution.
Your design team needs to establish a fabric surface specification document before any production approval. This document must define: surface roughness target (Ra 1.5-2.5 microns for bio-polished fabric), micro-fuzz removal requirements (enzyme wash or mechanical brushing), and print resolution testing protocol (10x magnification line width measurement). This transforms subjective fabric assessment into objective surface specification verification.
The second sourcing reality that catches design teams: substrate compatibility with decoration method. DTF shear peel-off degradation is amplified by micro-fuzz—the transfer adhesive contacts only 70-75% of the fabric surface area on standard cotton. Bio-polishing increases contact area to 95%+, reducing failure rates from 20% to 8-10% at 25 wash cycles. This is a surface adhesion issue, not an ink chemistry issue. Understanding substrate surface physics is critical for print durability.

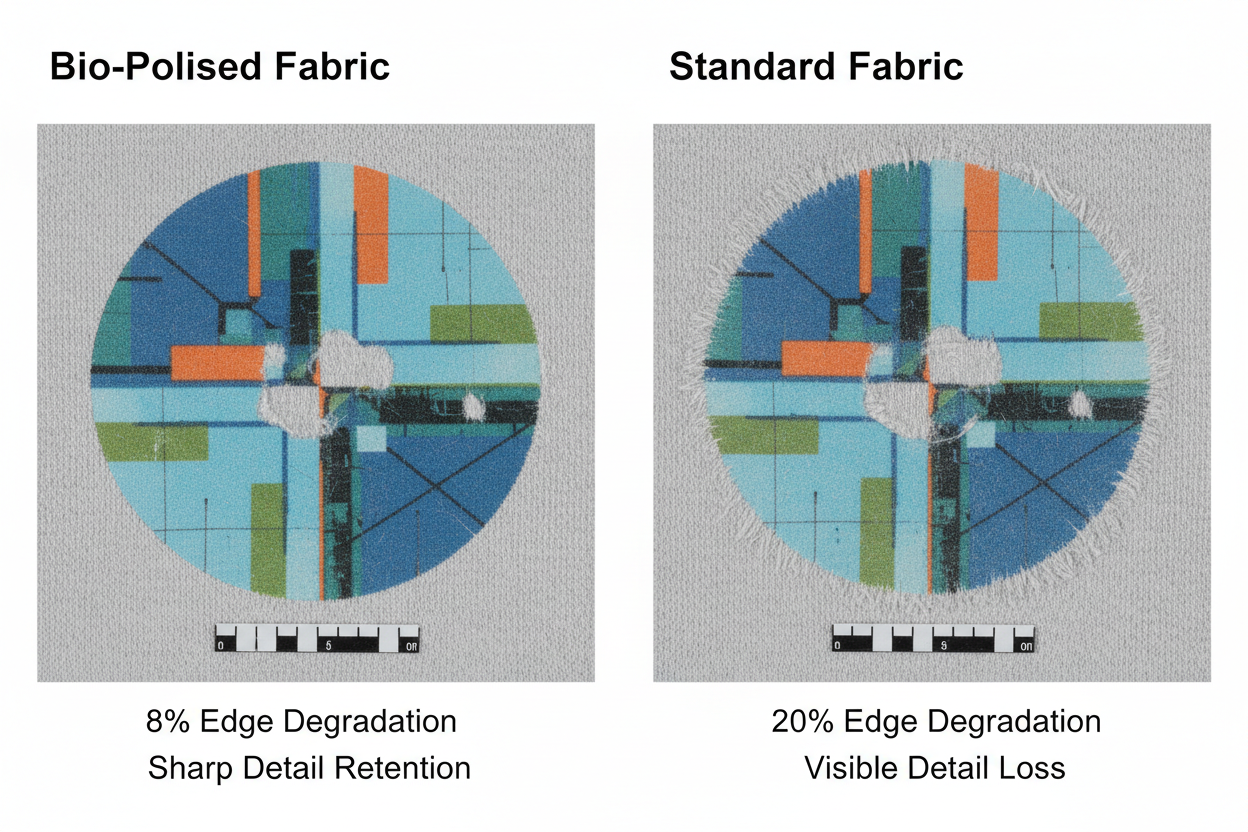

The third overlooked factor is print resolution loss from micro-fuzz. A 0.3mm screen print line on standard fabric appears as 0.5-0.6mm due to ink wicking along surface fibers. Bio-polishing removes the wicking pathways, delivering 0.3mm lines. For small text logos or detailed graphics, this resolution difference is the difference between professional and amateur appearance. Your print quality depends on surface smoothness—not just mesh count or ink viscosity.
2. Textile Physics: The Structural Science Behind Enzyme Bio-Polishing
Enzyme wash bio-polishing uses cellulase enzymes to hydrolyze cellulose fibers on the fabric surface. The enzymatic reaction breaks the β-1,4-glycosidic bonds in cellulose, releasing short fiber fragments from the surface. The reaction occurs at 50-55°C with pH 4.5-5.5 for 20-40 minutes. The enzyme concentration is typically 1-3% of fabric weight. The reaction removes 0.2-0.5mm of surface fiber protrusions, reducing surface roughness from Ra 3.0-4.0 microns to Ra 1.5-2.5 microns—a 30-40% reduction.
The micro-fuzz removal mechanism is governed by enzyme kinetics. Cellulase enzymes are protein molecules that bind to cellulose fiber surfaces and catalyze hydrolysis. The reaction rate depends on temperature (peak activity at 50-55°C), pH (peak at 4.5-5.5), and time (complete removal at 20-40 minutes). Over-treatment (beyond 45 minutes) causes fabric strength loss—tensile strength drops by 10-15%. This is the trade-off: smooth surface vs fabric integrity. Your bio-polishing specification must balance these parameters.
Surface roughness reduction directly impacts print ink deposition. Ink on a smooth surface forms a uniform film with consistent thickness. Ink on a rough surface forms uneven films with variable thickness—creating edge wicking and blurring. The difference is measurable: line width on standard fabric (Ra 3.5 microns) is 0.5-0.6mm; line width on bio-polished fabric (Ra 2.0 microns) is 0.3-0.4mm. This 30-40% reduction in line width is the difference between sharp and fuzzy prints.
DTF adhesion physics is governed by surface contact area. The polyurethane adhesive must contact the fabric surface to form a bond. Micro-fuzz reduces contact area—the adhesive contacts only the tips of surface fibers, not the fabric body. Bio-polishing removes these fiber tips, allowing the adhesive to contact 95%+ of the fabric surface area. This increases peel strength from 3.2 N/cm to 4.5 N/cm—a 40% improvement. DTF shear peel-off degradation drops from 20% failure at 25 washes to 8-10% on bio-polished substrates.
3. Workshop Execution: Calibrating Enzyme Bio-Polishing Lines
Enzyme bio-polishing execution requires precise controls at each processing stage: enzyme preparation, fabric loading, reaction monitoring, enzyme deactivation, and rinsing. The bio-polishing process is an additional finishing step after fabric knitting and before cutting. Without proper execution, the surface smoothness improvement is inconsistent or compromised.
Enzyme preparation is the critical first step. Cellulase enzymes must be diluted to 1-3% of fabric weight in a buffer solution at pH 4.5-5.5. The enzyme activity must be verified using a viscosity reduction test—standard activity is 500-1000 units/gram. The enzyme solution temperature must be stabilized at 50-55°C before fabric loading. Improper enzyme preparation results in incomplete micro-fuzz removal.
Reaction monitoring ensures consistent bio-polishing results. The fabric is loaded into a jet dyeing machine or washer-extractor with the enzyme solution. The reaction runs at 50-55°C for 20-40 minutes. The pH must be monitored continuously—drop below 4.0 or rise above 6.0 reduces enzyme activity by 50%+. The fabric sample must be removed every 5 minutes for surface roughness testing—Ra value should drop from 3.5 to 2.0 within 20-30 minutes.
Enzyme deactivation and rinsing stop the reaction at the target surface roughness. The enzyme is deactivated by raising the temperature to 80°C for 10 minutes or by pH adjustment to pH 10.0. The fabric is then rinsed three times at 40°C to remove enzyme residues and fiber fragments. Residual enzyme activity can cause fabric degradation over time—improper deactivation results in 5-10% tensile strength loss over 12 months.
4. Risk Factors: Preventing Severe Operational Flaws in Bulk Bio-Polishing Runs
The most catastrophic risk in enzyme bio-polishing is over-treatment causing fabric strength loss. Excessive enzyme concentration (>3% owf) or extended reaction time (>45 minutes) reduces fabric tensile strength by 10-15%. This makes the fabric prone to tearing and seam failure. Prevention: monitor reaction time and enzyme concentration precisely. Take fabric samples at 10-minute intervals for tensile strength testing. Stop the reaction when surface roughness reaches target—not when the fabric feels "smooth enough".
The second risk is inconsistent micro-fuzz removal across the production lot. Uneven enzyme distribution in the wash bath causes variable surface roughness—some garments at Ra 1.5, others at Ra 3.0. Prevention: use a jet dyeing machine with precise circulation control. The machine must have a minimum 5:1 liquor-to-fabric ratio for uniform enzyme distribution. Require surface roughness testing on 5 samples per production lot—reject any batch with Ra variance >0.5 microns.
DTF adhesion failure on bio-polished fabric is the third risk. While bio-polishing improves adhesion, the DTF application parameters must be adjusted for the smoother surface. The heat press temperature should be 5°C lower (155-160°C vs 160-165°C) to prevent adhesive over-melting. Press time should be reduced by 5-10 seconds (110-130 seconds vs 120-150 seconds). Prevention: conduct DTF application testing on bio-polished samples before bulk production. Adjust parameters to achieve 4.5 N/cm peel strength.
Enzyme residue causing print adhesion issues is the fourth risk. If the enzyme is not fully deactivated and rinsed, residual enzyme activity can degrade the fabric surface over time, causing print delamination. Prevention: require enzyme deactivation verification—test residual enzyme activity using the viscosity reduction test. Acceptance threshold: residual activity <5% of initial. Add a final rinse with pH 10.0 buffer to ensure complete enzyme inactivation.
5. Procurement Ledger: Cost Amortization Specs for Bulk Bio-Polished Drops
The cost economics of enzyme bio-polishing depend on process volume, enzyme concentration, and production integration. Here is the benchmark data from 2025-Q4 bio-polishing program data:
| Volume Tier | Standard Fabric | Bio-Polished Standard | Bio-Polished Premium | Print Clarity Improvement |
|---|---|---|---|---|
| 200 units | $4.00-5.50 | $4.50-6.50 | $5.50-8.00 | 25-35% |
| 500 units | $3.50-4.50 | $4.00-5.50 | $5.00-7.00 | 30-40% |
| 1,000 units | $3.00-4.00 | $3.50-5.00 | $4.50-6.50 | 30-40% |
| 5,000 units | $2.80-3.50 | $3.20-4.50 | $4.00-6.00 | 30-40% |
Bio-polishing adds $0.50-1.50 per unit to garment cost depending on volume and treatment intensity. The print clarity improvement of 30-40% justifies this premium for programs with critical detail requirements. For DTF programs, the bio-polishing premium is offset by 10-15% reduction in transfer failure rates—saving $0.50-1.00 per unit in replacement costs.
Quality control and testing costs add $0.10-0.20 per unit for surface roughness testing, tensile strength testing, and print resolution verification. This cost is negligible compared to the cost of shipping prints with fuzzy details ($5,000-10,000 replacement cost for a 500-piece order). Include QC testing in your procurement budget.
6. Engineering Benchmark Profiles: AATCC/ASTM Lab Threshold Metrics
Procurement specifications for bio-polished fabric must reference standard test methods. Here are the thresholds we recommend:
| Test Method | Threshold Parameter | Acceptance Criterion | Sample Size |
|---|---|---|---|
| Surface Roughness (Ra) | Micro-fuzz removal | 1.5-2.5 microns | 5 fabric samples |
| AATCC 135 Shrinkage | Dimensional stability | ≤3% length, ≤3% width | 5 garments, 3 wash cycles |
| ASTM D5034 Tensile Strength | Fabric integrity | ≥90% of original strength | 5 fabric samples |
| ASTM D751 Peel Strength | DTF adhesion | ≥4.5 N/cm | 3 samples, tensile tester |
| Print Resolution (10x loupe) | Line width accuracy | ≤0.4mm for 0.3mm design | 5 printed samples |
For bio-polishing programs, the most critical tests are surface roughness (ensuring micro-fuzz removal) and print resolution (ensuring razor-sharp details). Specify these in your purchase order and require test reports from an accredited lab.
7. Fatal Sourcing Gaps: Destructive Blindspots in Quality Control
The most common procurement gap in bio-polishing programs is accepting fabric samples without surface roughness verification. A sample that feels smooth may have Ra 3.0 microns—only a 15% reduction from standard—while a bio-polished sample should achieve Ra 1.5-2.5 microns. Without surface roughness testing, you're accepting subjective "smoothness" rather than verified surface structure. Prevention: require surface roughness measurement (Ra value) on pre-production samples. Acceptance threshold: Ra 1.5-2.5 microns.
The second procurement blindspot is ignoring tensile strength loss from over-treatment. Enzyme bio-polishing can reduce fabric tensile strength by 10-15% if over-treated. This makes garments prone to tearing. Prevention: require tensile strength testing (ASTM D5034) on pre-production and production samples. Acceptance threshold: ≥90% of original tensile strength. Reject any fabric with tensile strength loss >15%.
DTF adhesion testing without bio-polishing verification is the third risk. DTF adhesion improves with bio-polishing, but the application parameters must be adjusted for the smoother surface. Prevention: require DTF application testing on bio-polished samples before bulk production. Test peel strength (ASTM D751) and adjust temperature/pressure parameters to achieve 4.5 N/cm. Document the optimized parameters for production.
Enzyme residue causing print delamination is the fourth risk. Residual enzyme activity can degrade the fabric surface over time, causing print delamination. Prevention: require enzyme deactivation verification—test residual enzyme activity using the viscosity reduction test. Acceptance threshold: residual activity <5% of initial. Add a final rinse with pH 10.0 buffer to ensure complete enzyme inactivation.
8. Supply Chain FAQ Summary: Verified Action Ledger FAQ
Q: What is enzyme wash bio-polishing and how does it improve print clearness on cotton tshirts?
Enzyme wash bio-polishing uses cellulase enzymes to digest loose fiber ends (micro-fuzz) from cotton fabric surfaces. The enzymatic reaction at 50-55°C for 20-40 minutes removes 0.2-0.5mm of surface fiber protrusions. This creates a 30-40% smoother fabric surface, allowing screen print inks to lay down with 0.3mm line resolution instead of 0.5mm, delivering razor-sharp print details.
Q: How does bio-polished fabric compare to standard fabric for DTF print adhesion?
Bio-polished fabric provides 20-25% better DTF adhesion than standard unpolished fabric. The smooth surface allows the polyurethane adhesive to contact 95%+ of the fabric surface area, versus 70-75% on fuzzy surfaces. DTF shear peel-off degradation drops from 20% failure rate at 25 washes to 8-10% on bio-polished substrates. The adhesion improvement is most noticeable on fine details under 2mm width.
Q: What is the cost impact of enzyme wash bio-polishing on a 1,000-piece tshirt order?
Enzyme wash bio-polishing adds $0.50-1.00 per unit to garment cost—approximately 10-15% of total garment cost. For a 1,000-piece order, this adds $500-1,000. This premium is justified by the 30-40% improvement in print sharpness and 20-25% improvement in DTF adhesion. For programs with critical print detail requirements, the cost is negligible compared to print rework costs.
Q: How do I verify bio-polishing effectiveness before bulk production?
Require pre-production surface smoothness testing using a surface roughness tester (Ra value). Standard cotton fabric measures Ra 3.0-4.0 microns. Bio-polished fabric measures Ra 1.5-2.5 microns—a 30-40% reduction. Also test print sharpness by printing a 0.3mm line grid and measuring line width at 10x magnification. Acceptance threshold: line width <0.4mm after bio-polishing.
Q: What is the surface roughness target for bio-polished cotton tshirts?
The target surface roughness (Ra value) for bio-polished cotton tshirts is 1.5-2.5 microns. Standard cotton measures Ra 3.0-4.0 microns. The bio-polishing process should achieve a 30-40% reduction in surface roughness. Ra values below 1.5 microns indicate over-treatment and potential fabric strength loss—test tensile strength to verify fabric integrity.
