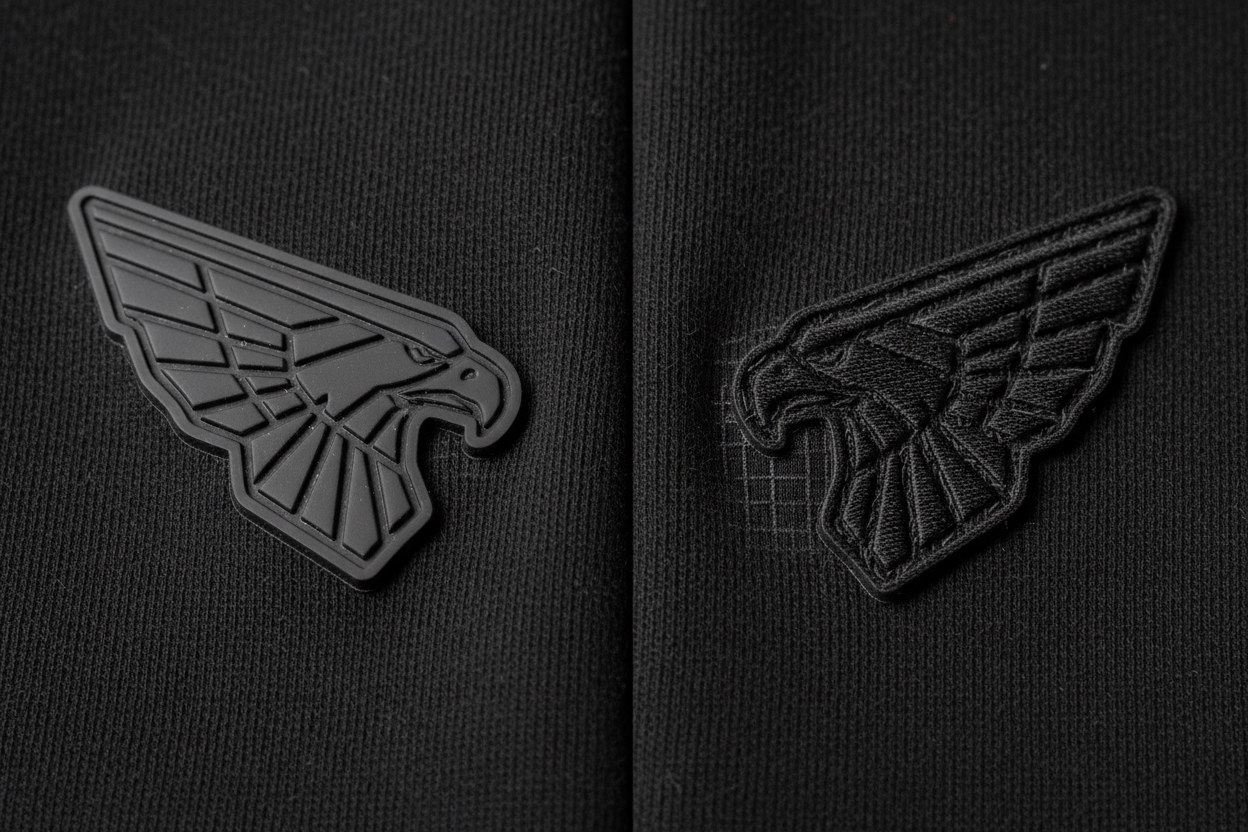

PVC Patch vs Embroidered Patch: Technical Decoration Comparison
1. Sourcing Realities: What Custom Decoration Specialists Overlook Regarding Patch-to-Substrate Physics
You’re sourcing 5,000 hoodies for a streetwear drop. Design sends vector art with 0.3mm fine-line details. Your mill quotes PVC injection molding at $400 mold fee, embroidery at $50 digitizing. You pick PVC because “3D looks premium.” Three weeks later, the patches delaminate from fleece after one cold wash. The problem: dimensional fabric texture adhesion wasn’t tested. PVC plastisol fuses at 160°C; fleece’s brushed back creates a 0.2–0.4mm air gap. Heat transfer is uneven. The patch lifts at edges with 1.2 lbf peel force – below the 2.5 lbf industry threshold.
Procurement executives skip the substrate compatibility matrix. Polyester sublimation cross-linking chemistry demands 70%+ polyester content. Embroidered patches need stitch density panel weight disproportion analysis – fine knits (18 gauge, 160 GSM) can’t hold more than 12 stitches/cm² without puckering. DTF transfers fail on textured pique because the 50 micron backing can’t conform to knit loops. This section breaks down what your factory won’t tell you.
The first reality check: surface energy. Nylon measures 46 dynes/cm – PVC bonds well. Polyester is 43 dynes/cm – also acceptable. But any silicone stain repellent drops surface energy to 22–24 dynes/cm. PVC won’t stick. Embroidery punches through but needle holes remain unsealed – moisture wicks in. You need a plasma pre-treatment or switch to high-frequency welded PVC (which requires specialized tooling adding $1,200 to mold cost). Test with a dyne pen kit ($85 on McMaster-Carr) before sampling. Run five substrates. Record which fail.
Second reality: wash durability is not a guessing game. AATCC 135 (5 home launderings at 40°C) is the baseline. Your certification must include 90° peel testing at 300 mm/min. Embroidered patches: failure is thread fray or fabric tear around the perimeter. PVC patches: failure is delamination or edge curl. DTF transfers: failure is adhesive shear (translucent backing separates from fabric). Your purchase order must cite ASTM D751 for PVC, ASTM D4851 for embroidery. No exceptions.
2. Textile Physics: The Structural Science Behind Stitch Density Panel Weight Disproportion
Embroidered patches fail in two ways: needle cutting and substrate puckering. Both trace back to stitch density panel weight disproportion. Here’s the physics: every needle puncture displaces yarns. At low density (8 stitches/cm²), yarns return to near-original position. At 14 stitches/cm² on a 200 GSM fleece, each cm² receives 14 punctures, removing 0.8–1.2% of the fabric’s tensile modulus. After 2,000 units, your machine operator increases tension to compensate for thread breaks. Tension jumps from 40 cN to 65 cN. The fabric distorts. The patch cups inward.
Calculate your fabric’s nominal stitch density tolerance: take a 10cm x 10cm sample. Run an embroidery hoop at 800 SPM (stitches per minute) with 40 wt polyester thread. Increase stitch density in 2 stitches/cm² increments. Stop when you see edge ripple or thread breaks. For 18-gauge pique knit (160 GSM), the limit is 10–12 stitches/cm². For 24-gauge interlock (220 GSM), you can push to 14–16 stitches/cm². For non-woven stabilizers (2.5 oz cutaway), you can hit 20 stitches/cm² but the drape becomes board-like – handle changes from soft to stiff (measured by cantilever bending length increase from 4cm to 9cm).
PVC patches operate under different physics: durometer and flex life. 60 Shore A (standard patch) flexes 100,000 cycles at 23°C before cracking per ASTM D430. Drop to 40 Shore A (softer, more drape) and flex life drops to 40,000 cycles – unacceptable for outerwear. Increase to 80 Shore A (harder) and the patch won’t conform to curved surfaces like cap crowns – you get edge lift after 20 bends. For caps, spec 55 Shore A + high-frequency welded edge. For flat chest placement on fleece, 65 Shore A + 0.2mm raised border is safe.
One more variable: vector node tensile modulation in embroidery digitization. When you convert a sharp corner (e.g., a star point with 30° angle), the digitizer places node points every 0.3mm along the curve. Poor modulation clusters nodes at the apex – 8 thread intersections in a 2mm radius. Each intersection adds stress. Thread tension at the node hits 120 cN while adjacent straight runs are at 50 cN. The result: thread breaks every 200–300 stitches. The fix: demand a density map from your digitizer showing tension distribution. Reject any file with node clusters exceeding 6 intersections per cm².
3. Workshop Execution: Calibrating Embroidery and PVC Injection Output Lines
Your supplier’s floor matters more than the design file. Here’s what to audit.
